Bilstein

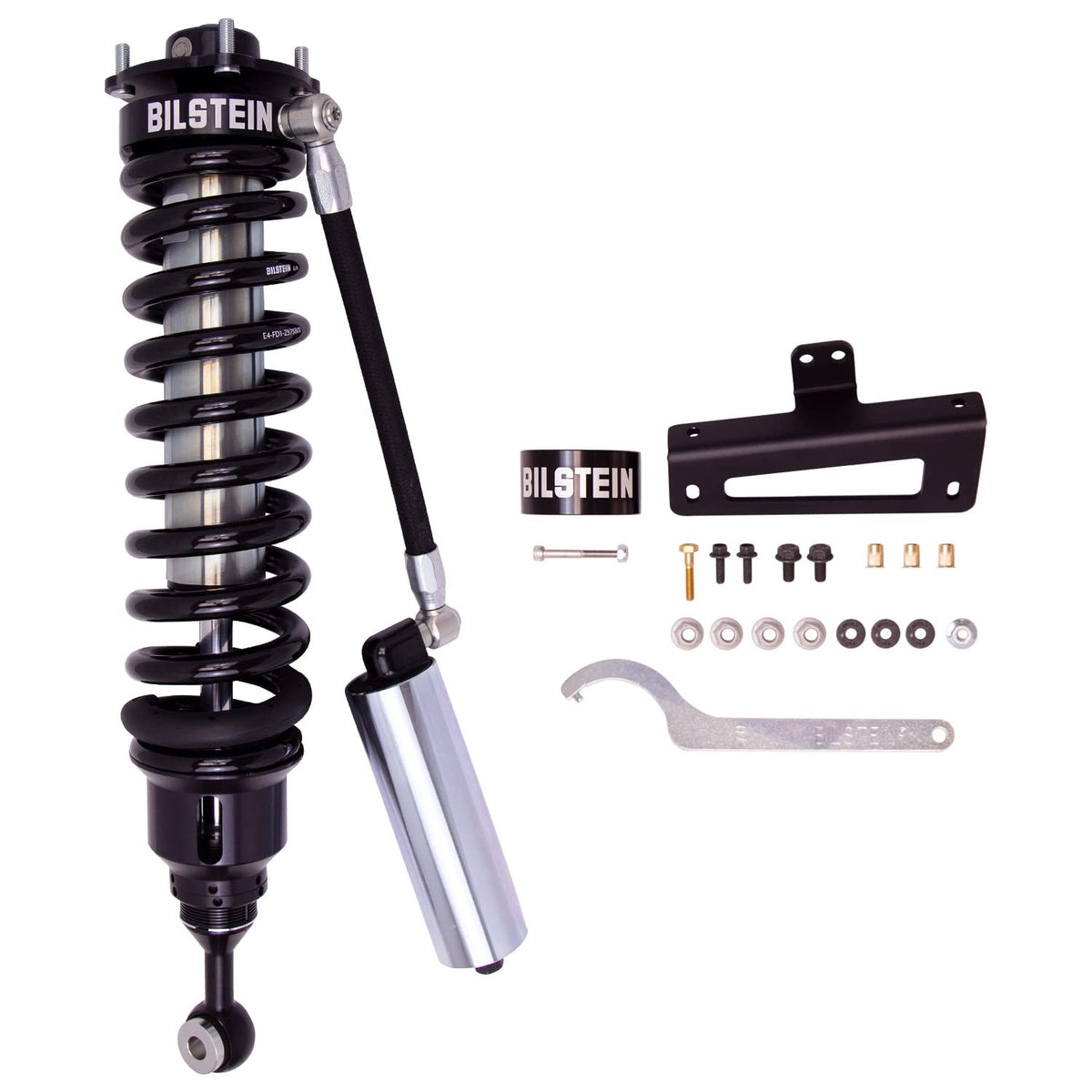

Bilstein B8 8112 Series 07-20 Toyota Tundra Zone Control Monotube Front Left Corner Module (41-284544)
Bilstein B8 8112 Series 07-20 Toyota Tundra Zone Control Monotube Front Left Corner Module (41-284544)
SKU:B5241284544
In stock
Couldn't load pickup availability
- Genuine brand-name parts
- Ships from US warehouse
- 30-day returns
The Bilstein 41-284544 is a b8 8112 series 07-20 toyota tundra zone control for 2007–2020 Toyota Tundra. It is a new, genuine Bilstein part with the manufacturer warranty, shipped from the closest US warehouse.
Fits: 2007–2020 Toyota Tundra
Key features
- ZoneControl CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Compression (C): Provides superior bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop
- Rebound (R): Secondary rebound stop will dissipate spring energy and stabilize the suspension directly following a large compression event. The internal rebound stop will also eliminate harsh top-out events and the need for an external limit strap
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- Adjustable threaded spring seat allows for fine-tuned ride height; 60mm remote reservoir for increased oil capacity and cooling; Vehicle specific design and tuning provides the ultimate driving experience. Aerospace quality components are vehicle specific to optimize wheel travel and clearance; High quality chrome 5/8” heim joint mounting with rubber sealed misalignment spacers offer the most durable, load bearing mount solution; Aluminum components with zinc plated shock bodies will resist harsh off-road elements; Coilover supplied as a complete module for easy installation. Spring is pre-loaded to the factory recommended ride height; Factory rebuildable
Specifications
| Brand | Bilstein |
|---|---|
| Manufacturer part number | 41-284544 |
| Part type | Shock Absorber |
| UPC / GTIN | 651860838489 |
| Vehicle fitment | 2007–2020 Toyota Tundra |
| Weight | 35.00 lb |
| Dimensions (L × W × H) | 33.5 × 11.9 × 8.9 in |
| Category | Suspension & Steering |
| Condition | New — genuine brand-name part |
| Warranty | Manufacturer warranty |
| Also searched as | 41 284544, 41284544 |
